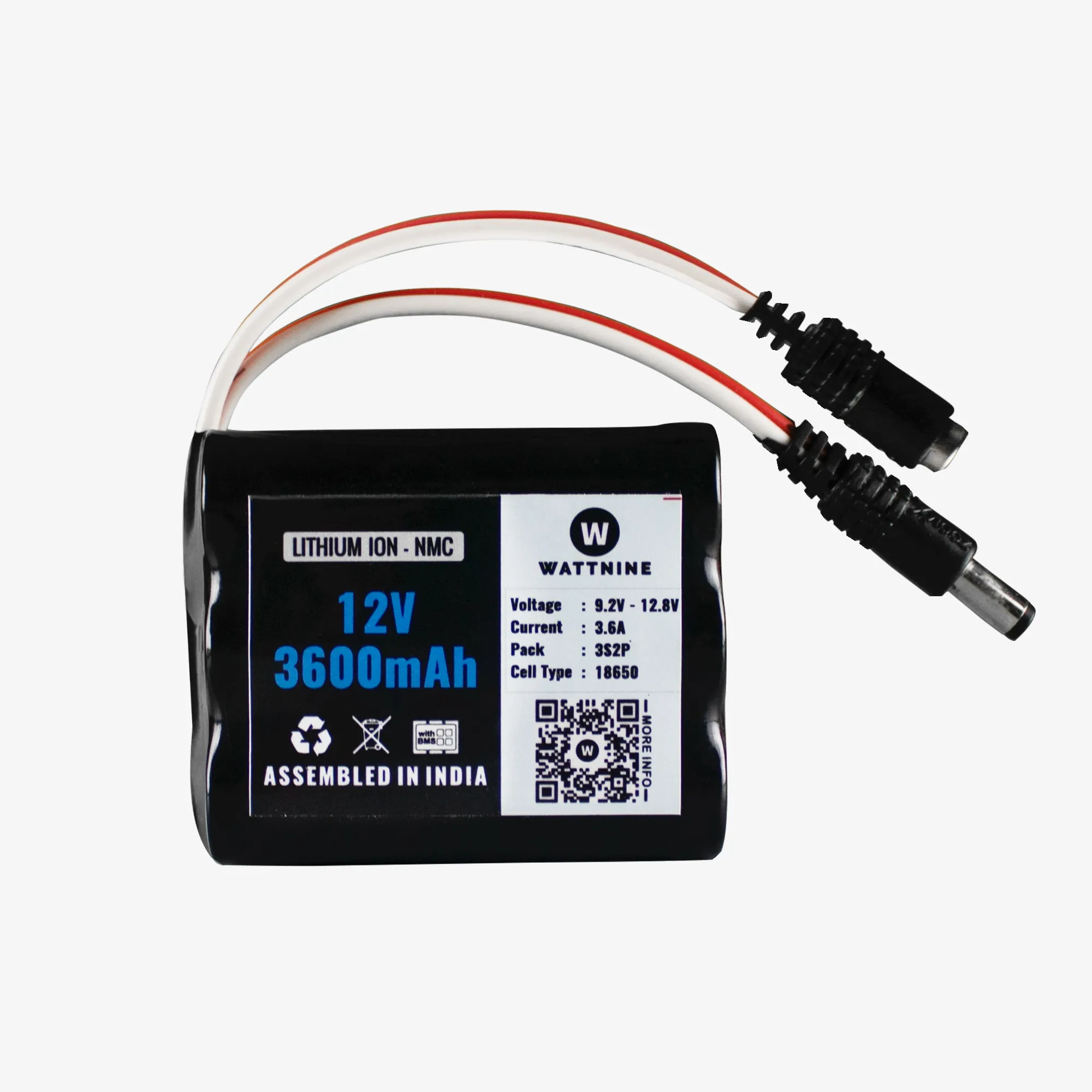

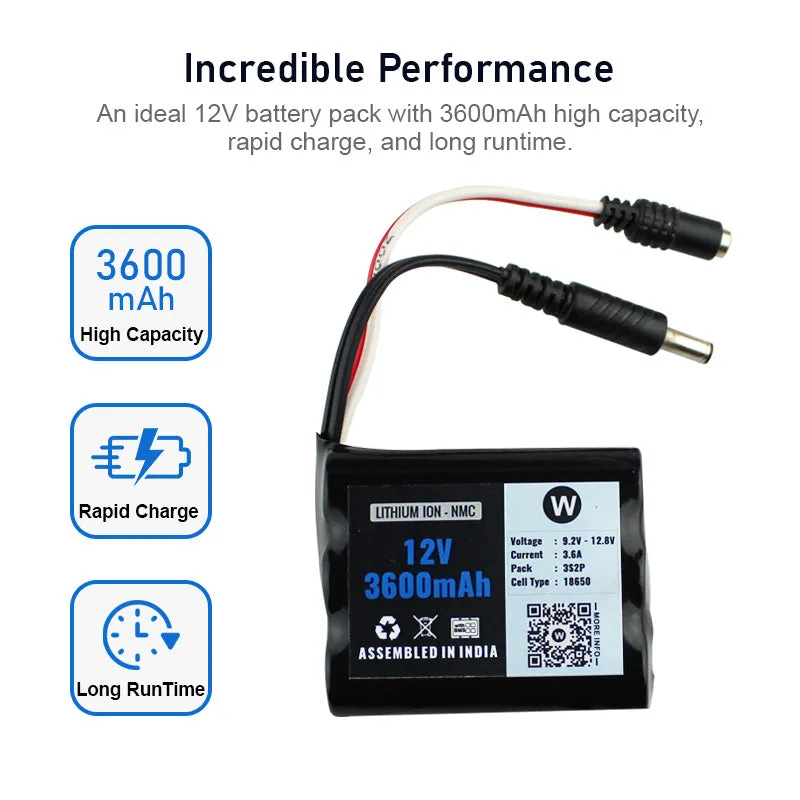

This Li-ion Rechargeable Battery Pack has a nominal voltage of 12.6 volts and is a 3s2p battery pack. This battery pack contains 6 cells connected in series and parallel, giving it a capacity of 3600mAh. The battery pack has a built-in BMS that protects the battery from overcharging, over-discharging and short circuit.
Recommended Charger - Charging Time
- - 2Hrs
- - 1 Hr 30 Min.
Specification
- Charging Voltage- 12.6V
- Charging Current- 1.8A
- Nominal Pack Voltage- 11.1V
- Max Discharge Current- 3.6A
Protection (Included BMS)
- Short Circuit Protection
- Overvoltage cut-off- 12.8
- Undervoltage cut-off- 9.2V
Applications:
- Small scale UPS Battery
- Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
- Wifi Modem or Router Battery for backup
- 12V Remote CCTV Camera
- PSP
- Industrial Machines
- Emergency Lights
- Robotics and RC cars
- Music Players and Audio Systems
Warranty Terms:
This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
